Helix is now available for Pre-Order!

June 2017 Delivery

Pre-Order

Helix

Helix features

Smaller

Helix was designed from to be the smallest and most compact folding bike in its class.

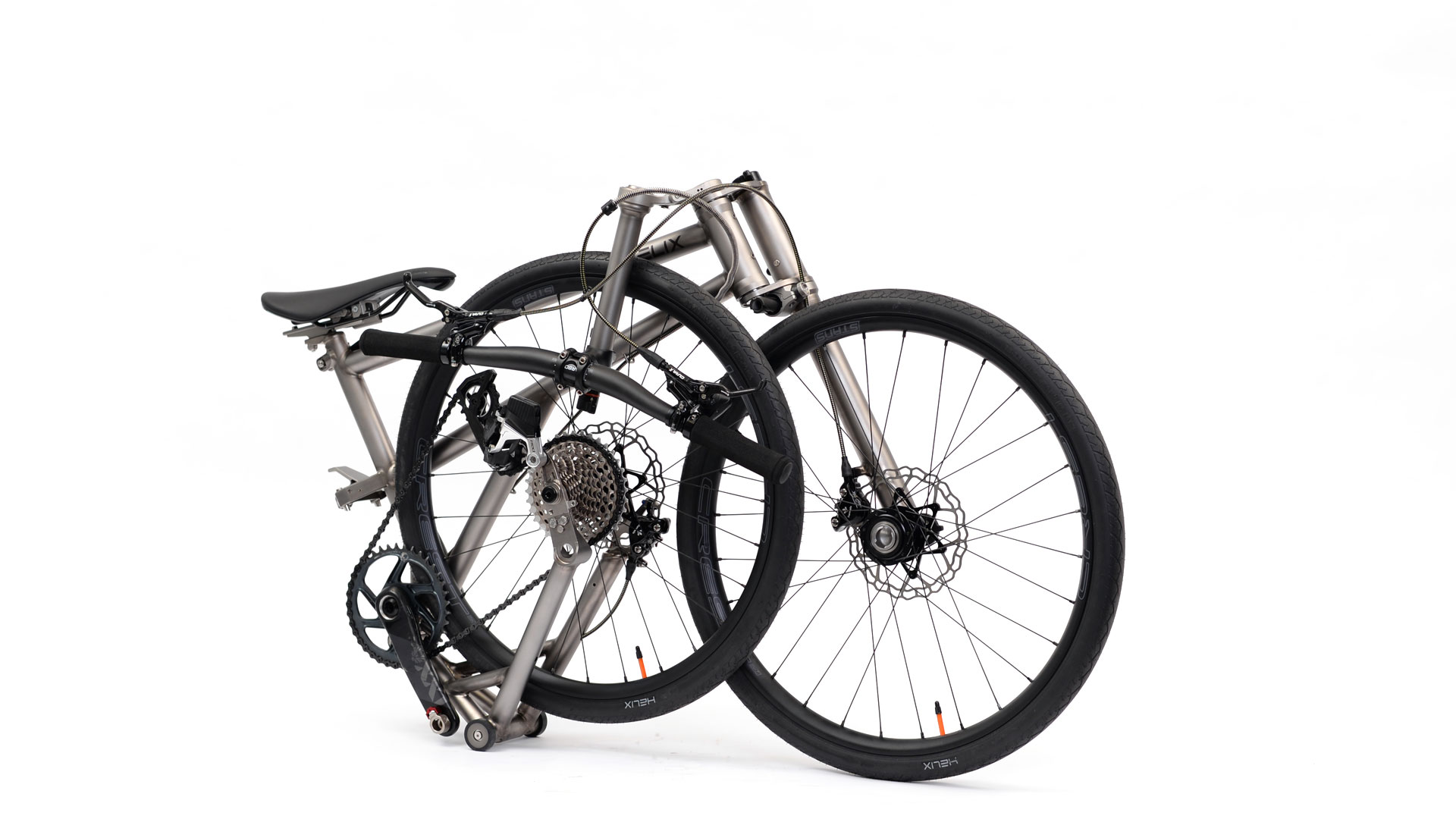

Helix folds down to the size of its wheels.

23" × 27" × 10"

Patent pending side-by-side folding puts the wheels beside the frame and between the cranks — it's the most efficient use of space possible.

Other folding bikes have smaller wheels but don't fold as small.

Helix features

Lighter

Helix was designed to go everywhere, whether it's the subway, the trunk of your car or a suitcase. Folding bikes are lifted often and must be lightweight.

22 Lbs

World class engineering and analysis have gone into to making Helix as light as possible without compromising everyday durability.

Helix features

Safer

Our patent pending spring loaded locking mechanisms pass through the fork and steerer tubes to create a safer lock. A secondary safety ensures the lock never fails.

Safer

Pass-through locking design with secondary safety ensures a worry free ride

More rigid

Spring loaded locking device compensates for wear and never needs adjustment

One-Piece Frame

Side-by-side folding allows for a one-piece hinge-free frame that won't flex or creak while pedaling

Helix features

Easier to Use

The combination of side-by-side folding and our patent pending helical hinges allow Helix to be folded with ease.

Once folded, it can be rolled on its own wheels and has an integrated stand for when you stop.

Folds in any order

The rear wheel, front wheel and handlebar can be folded in any order

Pedals won't get in the way

No need to rotate pedals — Helix's wheels fit right in between them

Rolls when folded

Helix is easy to carry and even easier to roll

Take it with you everywhere

Commuting

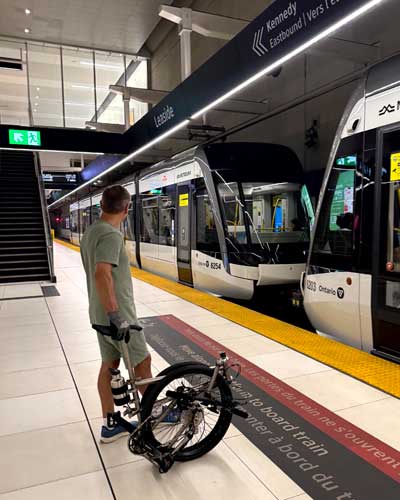

Ride from home to the subway or go the whole way. Store Helix under your desk so it won't get stolen outside.

Excursions

Go away for the weekend, Helix is so small it will fit in even the smallest car — with room to spare.

Travelling

Pack Helix in your suitcase — it will fit! Experience your destination in a whole new way.

Specifications

Helix Animated

Helix supports a range of bicycle accessories such as mud guards, racks, lights and more.

Helix uses interchangeable dropouts to allow for switching between all drivetrain options.

More detailed specifications including gear range and geometry can be found here.

Helix will be available in 3 specs: 10 speed derailleur, 11 speed internal gear hub, and a single speed.

All specs include the following:

Frame, fork and swingarm 3Al-2.5V CWSR titanium
Headset VP, angular contact bearing
Stem ART, 50mm, 17°, 3D forged
Handlebar Premetec 7-Series Al, 31.8mm, 580mm width
Brake Levers Avid BB5
Cables JagWire Pro Series
Seatpost TranzX, 3D forged, 27.2mm x 400mm
Saddle fabric Scoup Elite Radius (140 x 280)
Seatclamp Helix
Brake Calipers TRP Spyre
Brake Rotors Front: TRP IS mount 160mm
Rear: TRP IS mount 160mm
Front Hub Helix 28h, sealed bearing, IS disk mount
Crankset SRAM NX Direct Mount, GXP, 165mm
Chainring Helix 42t, narrow-wide
Chain FSA K-Force Light 10 Speed, hollow link, nickel plated
Pedals Suntour Folding or Wellgo M111 QRD-1 (upgrade)
Wheels Alex DP17
Spokes Pillar, stainless, black Ti plated
Nipples Pillar, brass
Tires Kenda Kwest 24" x 1.5" (ETRTO 40-507), 38 tpi, 75-100 psi
folding bead with puncture protection and reflective sidewall
Approximate Folded Dimensions 23" x 27" x 10"
Maximum Weight Limit 250 lbs (113 kg)
Rear Hub Formula RXC-142, 142mm x 12mm thru-axle, 28h
Rear Derailleur SLX M675, Shadow+ 10 Speed
Cassette Shimano SLX HG81 10 Speed (11-36t)
Shifter Shimano Zee M640 Rapid Fire
Approximate Weight 22.9 lbs (10.39 kg)
Price $1600 USD
Rear Hub Alfine 11 SG-S700-L (22t)
Shifter Shimano Alfine Rapidfire Plus SL-S700
Chain Tensioner Shimano Alfine CT-S500L
Approximate Weight 25.5 lbs (11.57 kg)
Price $1900 USD
Rear Hub Formula RXC-142, 142mm x 12mm thru-axle, 28h
Rear Sprocket Andel, 18t
(can be replaced with a larger or smaller sprocket or converted 9, 10 or 11 speed derailleur)
Chain Tensioner Shimano Alfine CT-S500L
Approximate Weight 21.8 lbs (9.89 kg)
Price $1500 USD

Titanium

Titanium is the only material for a folding bike that is lightweight, durable and can last forever.

Titanium is lightweight, durable, remarkably corrosion resistant and has excellent ride characteristics. It is an exceptional material for bicycle manufacturing.

A titanium frame can rival the weight of a high end carbon frame but with a level of durability that is unparalleled. Folding bikes are constantly being handled; they are folded, lifted, put in trunks and bags — durability is a necessity.

bike

Helix is robotically welded in an inert chamber to ensure the best possible welds

HELIXSee it in Action

Made in Canada

Helix is made in Canada using state of the art manufacturing processes.

We are the first company in the world to robotically weld bicycles in an inert chamber. This process creates the best possible welds.

Our titanium tubes are laser cut in-house with a proprietary process for perfect weld fit-up and mechanical properties.

Helix uses a large number of titanium CNC parts that are all made in-house to ensure the highest quality.

Helix is not only an exceptional folding bike, it is an exceptionally made bicycle.
